Ami - Downlight


Product Features

Dual Optical Solutions

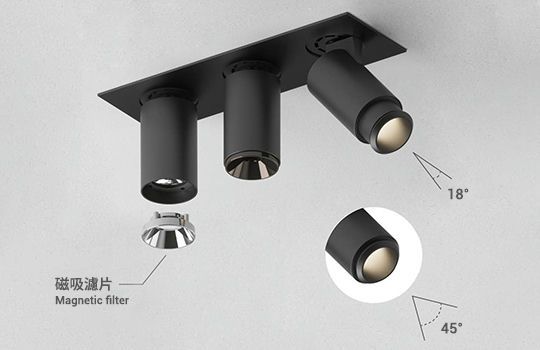

- Telescopic Focusing: Slide to adjust the beam size with a variable angle from 18 to 45 degrees.

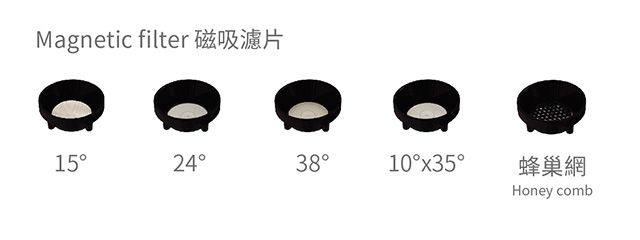

- Filter Zoom: Starting with a foundational angle of 10 degrees, it's possible to interchange different magnetic absorption angle filters to vary the beam angles. From circular ultra-narrow beams to elliptical beams, this meets the requirements of interior lighting designers for a multitude of illuminative layering options.



Variety in Filter Ring Colours

Choose from a palette of magnetic optical filter ring colours to blend seamlessly with existing decor, providing an exquisite final touch.






Multifunctional Lighting

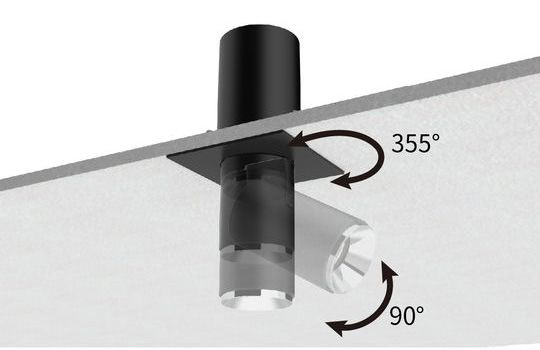

By extending, convert a recessed light into a track spotlight. This functionality allows for optical angle adjustments to cater to diverse environmental settings and the specific lighting standards required by the illuminated objects.














SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    18°-45°

  • Power

    10W

  • CRI

    ≧90

  • Luminous Flux

    370lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø82mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    10° + Magnetic filter

  • Power

    10W

  • CRI

    ≧90

  • Luminous Flux

    440lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø82mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    18°-45°

  • Power

    10W × 2

  • CRI

    ≧90

  • Luminous Flux

    370lm x 2

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    80 x 170mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    10° + Magnetic filter

  • Power

    10W × 2

  • CRI

    ≧90

  • Luminous Flux

    440lm x 2

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    80 x 170mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    18°-45°

  • Power

    10W × 3

  • CRI

    ≧90

  • Luminous Flux

    370lm x 3

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    80 x 265mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    10° + Magnetic filter

  • Power

    10W × 3

  • CRI

    ≧90

  • Luminous Flux

    440lm x 3

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    80 x 265mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    18°-45°

  • Power

    10W

  • CRI

    ≧90

  • Luminous Flux

    370lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø82mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    10° + Magnetic filter

  • Power

    10W

  • CRI

    ≧90

  • Luminous Flux

    440lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø82mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart
