Apollo


Product Features

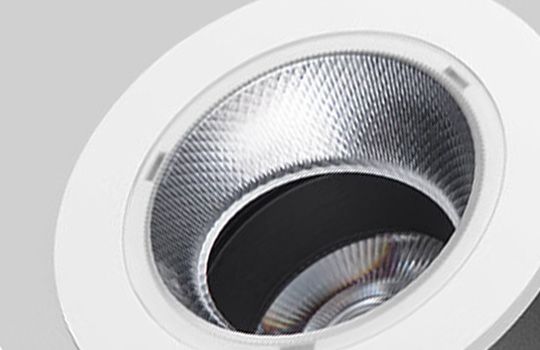

Unique Optical Design

The lens features a double-sided three-dimensional cross-pattern injection moulding, allowing for dual-sided illumination that is easy to clean and resistant to dust accumulation.

Alongside its functional lighting distribution, this optical design also presents a stunning halogen-like appearance when the light is off, enhancing the interior space aesthetically.

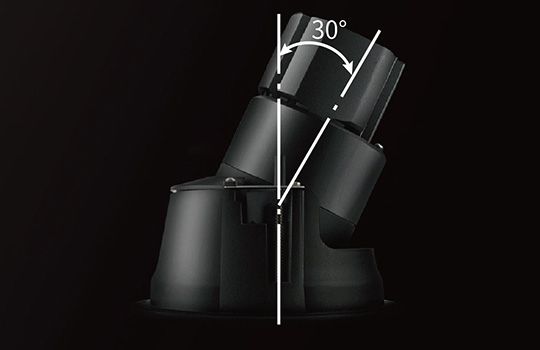

Adjustable Angle

The luminaire head is flexible, with an adjustable range of 0-30 degrees, allowing for precise light direction adjustment to meet diverse scene requirements.

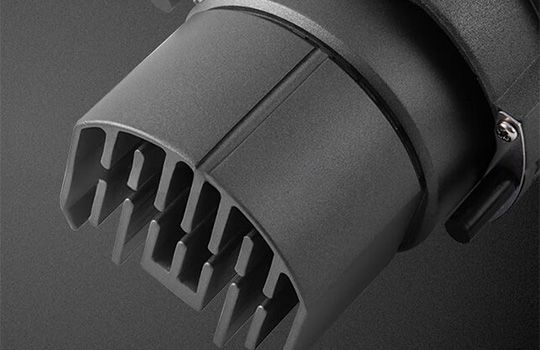

High-Efficiency Heat Dissipation

Employs a cold-forged heat sink, with the luminaire body and heat sink integrated into a single unit. A unique airflow design significantly enhances the cooling effect, thereby extending the lifespan of the product.



Precision-Engineered Aluminium

The body is crafted from high-purity aluminium, precisely machined using CNC technology, and finished with a high-temperature powder coating, resulting in an exceptionally robust and premium tactile quality.











SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    20° / 30° / 40°

  • Power

    10W

  • CRI

    ≧90

  • Luminous Flux

    700lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black / Grey+White

  • Cutout Hole

    Ø80mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    18° / 24° / 45°

  • Power

    24W

  • CRI

    ≧90

  • Luminous Flux

    1900lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black / Grey+White

  • Cutout Hole

    Ø125mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    15° / 24° / 36°

  • Power

    35W

  • CRI

    ≧90

  • Luminous Flux

    2700lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black / Grey+White

  • Cutout Hole

    Ø155mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart
