Helium


Product Features

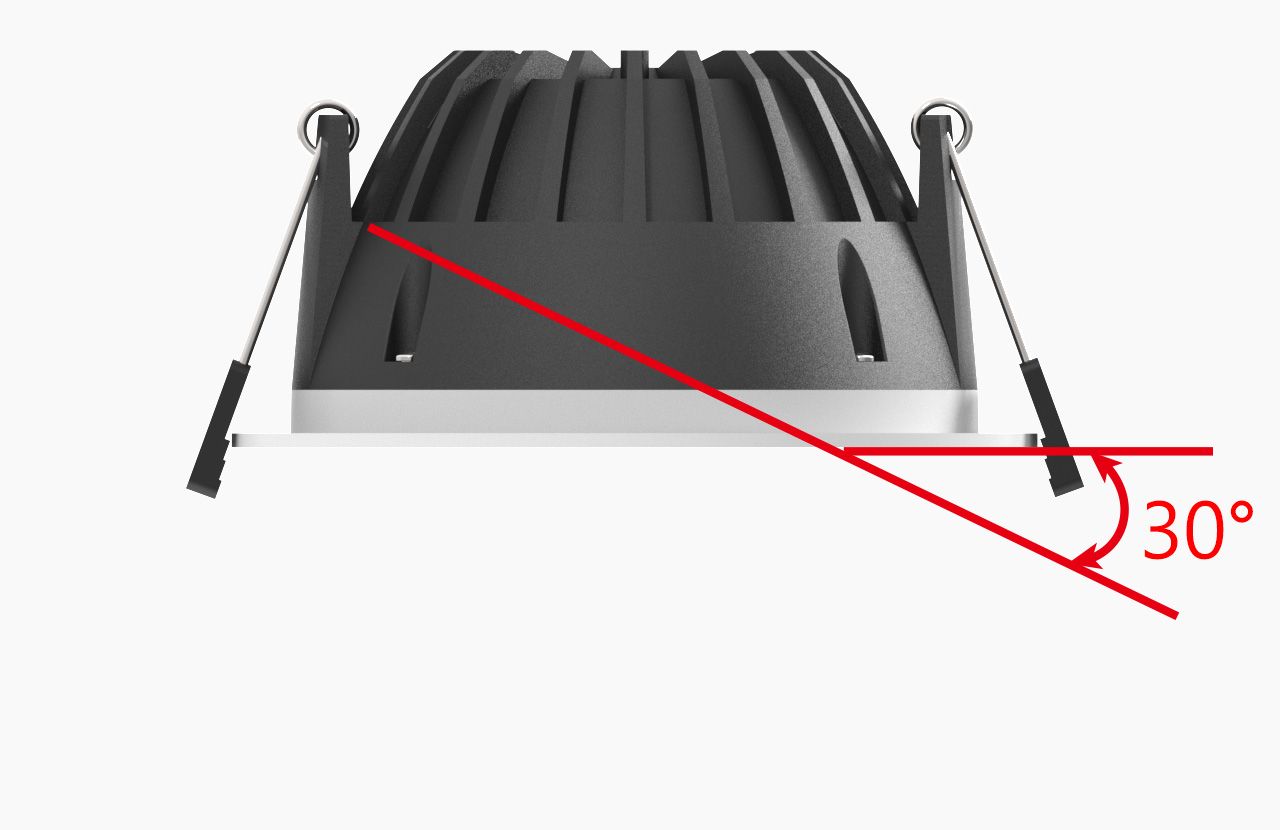

Deep Baffle Anti-Glare

The light source is deeply recessed to effectively reduce eye irritation, providing a soft and comfortable light that protects the eyes—light is visible without the fixture being seen.

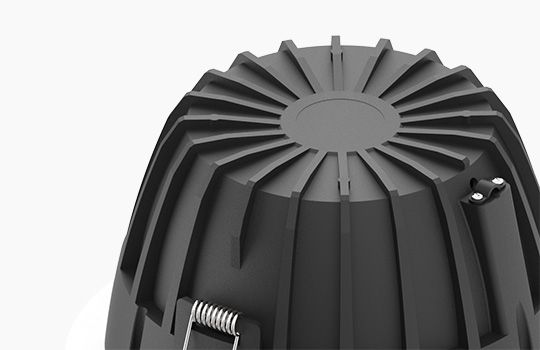

Efficient Heat Dissipation Design

The luminaire and heat sink are integrally formed, featuring a special airflow design to maximize heat dissipation efficiency and extend the lifespan of the product.



SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    58°

  • Power

    5W

  • CRI

    ≧90

  • Luminous Flux

    250lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø75mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    20° / 36°

  • Power

    7W

  • CRI

    ≧90

  • Luminous Flux

    390lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø75mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    65°

  • Power

    8W

  • CRI

    ≧90

  • Luminous Flux

    570lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø90mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    15° / 30° / 40°

  • Power

    11W

  • CRI

    ≧90

  • Luminous Flux

    630lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø90mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    60°

  • Power

    12W

  • CRI

    ≧90

  • Luminous Flux

    950lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø120mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    18° / 30° / 40°

  • Power

    15W

  • CRI

    ≧90

  • Luminous Flux

    1300lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø120mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    75°

  • Power

    20W

  • CRI

    ≧90

  • Luminous Flux

    1750lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø150mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    70°

  • Power

    28W

  • CRI

    ≧90

  • Luminous Flux

    2500lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø200mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart
