Boite


Product Features

   ◆  Multiple Module Combinations
        Offering box lights with Trim and Trimless designs in configurations of 1, 2, and 3 lights.
        These can be mixed and matched with quick-change modules for swift lighting transformations, addressing users' inventory challenges when adapting to different
        scenes. Additionally, providing magnetic angle filters for convenient angle adjustments.

   ◆  Eight Types of Luminaires with Multiple Lighting Distributions
        Modules can be changed according to different lighting types and needs, allowing for the creation of varied lighting effects within the same area.
        They fulfill requirements for general lighting, accent lighting, contour lighting, and task lighting.
        The assortment includes recessed lights, recessed track lights, floodlights, and pendants.

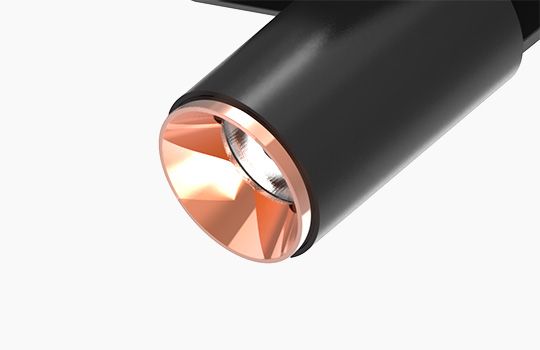

Versatile Optical Solutions

- Telescopic Focusing: Slide to adjust the beam size with a variable angle from 18 to 45 degrees.

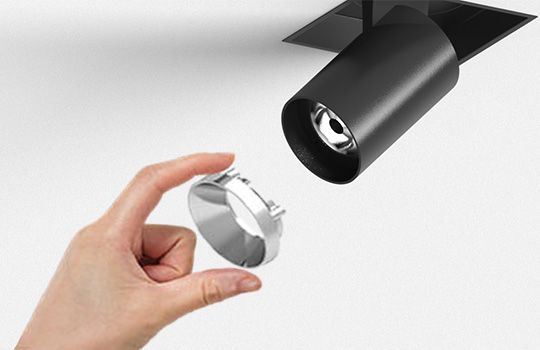

- Filter Zoom: Starting with a foundational angle of 10 degrees, it's possible to interchange different magnetic absorption angle filters to vary the beam angles. From circular ultra-narrow beams to elliptical beams, this meets the requirements of interior lighting designers for a multitude of illuminative layering options.

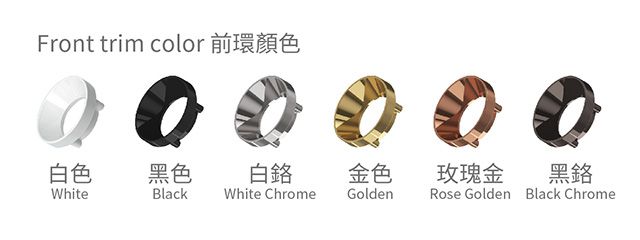

Variety in Filter Ring Colours

Choose from a palette of magnetic optical filter ring colours to blend seamlessly with existing decor, providing an exquisite final touch.

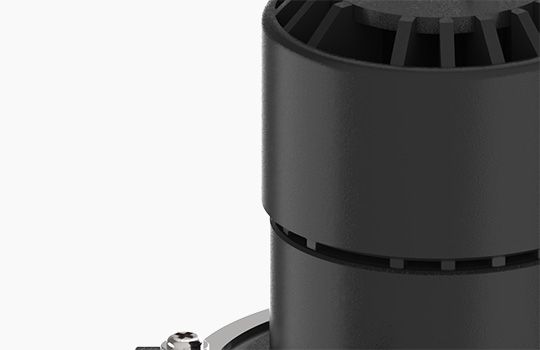

Efficient Heat Dissipation Design

The luminaire and heat sink are integrally formed, featuring a special airflow design to maximize heat dissipation efficiency and extend the lifespan of the product.

SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Asymmetric wallwash

  • Power

    12W

  • CRI

    ≥90

  • Luminous Flux

    690lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    17°-45°

  • Power

    12W

  • CRI

    ≥90

  • Luminous Flux

    730lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24°

  • Power

    12W

  • CRI

    ≥90

  • Luminous Flux

    940lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Flood

  • Power

    12W

  • CRI

    ≥90

  • Luminous Flux

    750lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    15° / 20° / 30°

  • Power

    7W

  • CRI

    ≥90

  • Luminous Flux

    390lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    10° + Magnetic filter

  • Power

    12W

  • CRI

    ≥90

  • Luminous Flux

    440lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    10° + Magnetic filter

  • Power

    12W

  • CRI

    ≥90

  • Luminous Flux

    650lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    18° / 24° / 40°

  • Power

    12W

  • CRI

    ≥90

  • Luminous Flux

    880lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart
