Clone


Product Features

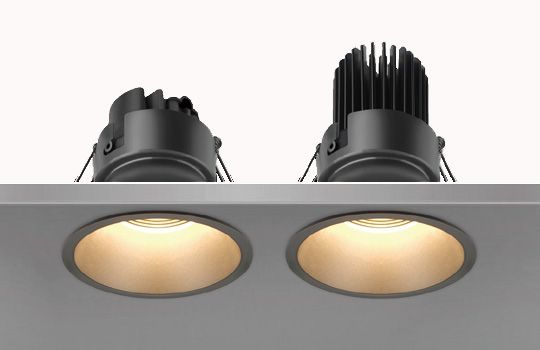

Diverse Applications of Light Engines

To extend the adaptability with light engines to achieve multiple function combination.

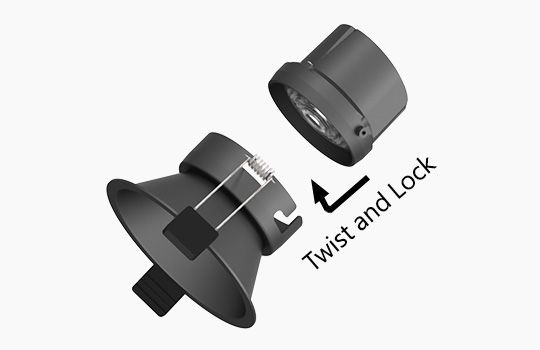

Easy Assembly - Twist and Lock

It’s an easy assembly method, enabling customers to easily choose the front trim according to their needs. Ease for stock.

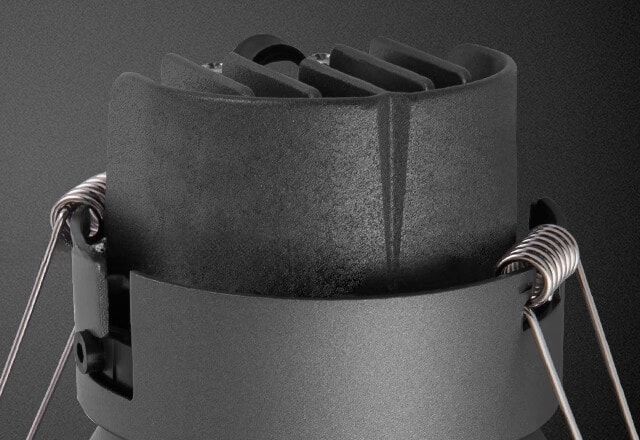

High-Efficiency Heat Dissipation

A cold-forged heat sink is employed, with the luminaire body and heat sink formed as a single unit. A unique airflow design maximises the dissipation effect, thereby extending the product’s service life.

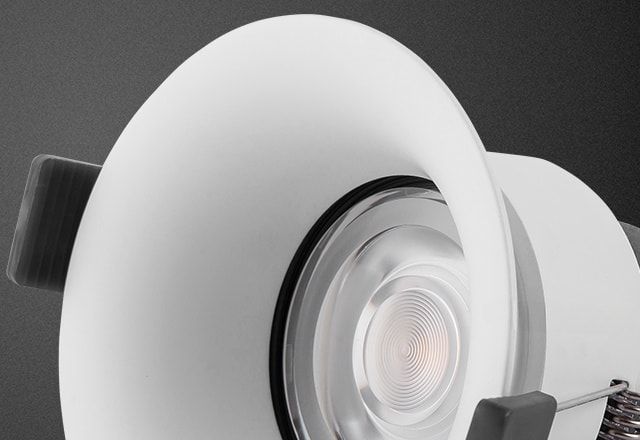

Precision-Engineered Aluminium

The body, crafted from high-purity aluminium, undergoes precise CNC machining. This is paired with a high-temperature powder-coating process for the finish, enhancing the strong tactile sensation of the exterior.






SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    9W

  • CRI

    ≧90

  • Luminous Flux

    670lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    Ø75mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    9W

  • CRI

    ≧90

  • Luminous Flux

    580lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    Ø75mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    9W

  • CRI

    ≧90

  • Luminous Flux

    630lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    Ø90mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    9W

  • CRI

    ≧90

  • Luminous Flux

    610lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    Ø90mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    9W

  • CRI

    ≧90

  • Luminous Flux

    590lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    Ø90mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    65°

  • Power

    9W

  • CRI

    ≧90

  • Luminous Flux

    500lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    Ø90mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    9W

  • CRI

    ≧90

  • Luminous Flux

    640lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    100x100mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    10W

  • CRI

    ≧90

  • Luminous Flux

    650lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    100x100mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    9W*2

  • CRI

    ≧90

  • Luminous Flux

    640lm*2

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    100x200mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    10W*2

  • CRI

    ≧90

  • Luminous Flux

    650lm*2

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    100x200mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    9W*3

  • CRI

    ≧90

  • Luminous Flux

    640lm*3

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    100x300mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 38°

  • Power

    10W*3

  • CRI

    ≧90

  • Luminous Flux

    650lm*3

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Grey / Black

  • Cutout Hole

    100x300mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

DOWNLOAD
