Mondo


Product Features

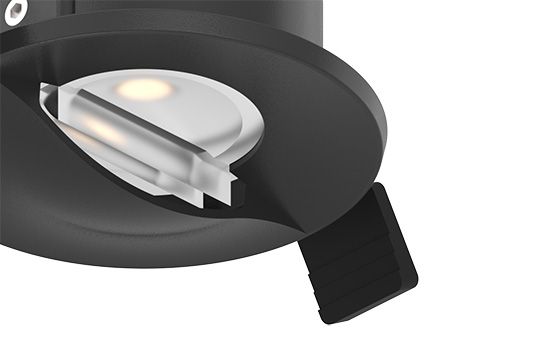

Professional Wall Washing Optics

Distinguished by its exceptional wall washing capabilities, it can illuminate an entire wall to perfection.

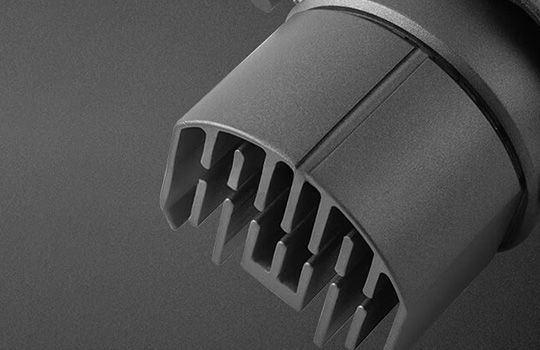

High-Efficiency Heat Dissipation

Utilises a cold-forged heat sink, integrating the luminaire body and heat sink into a single unit. A special airflow design significantly enhances the cooling effect, thereby extending the product's lifespan.

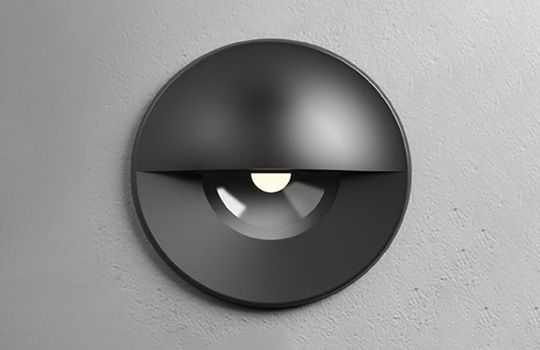

Precision-Engineered Aluminium

The body is crafted from high-purity aluminium, precisely machined using CNC technology, and finished with a high-temperature powder coating, resulting in an exceptionally strong and premium tactile quality.

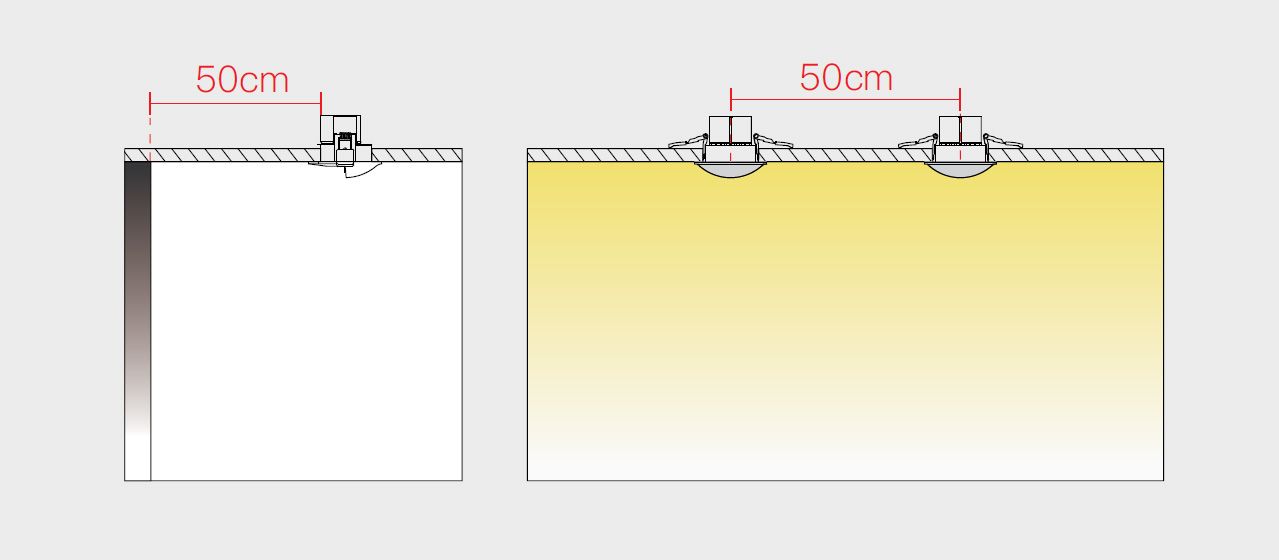

Luminaire arrangement recommandations















SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Asymmetric wallwash

  • Power

    15W

  • CRI

    ≧90

  • Luminous Flux

    840lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø75mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Asymmetric wallwash

  • Power

    15W

  • CRI

    ≧90

  • Luminous Flux

    840lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    Ø75mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart
