Aria


Product Features

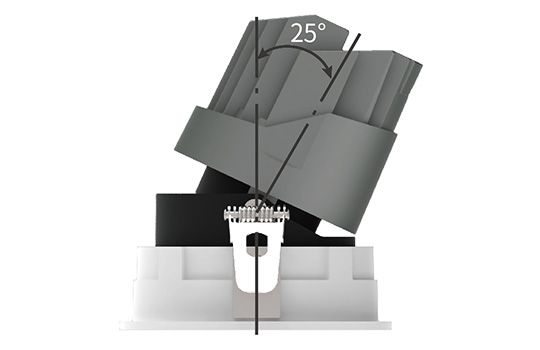

Luminaire adjustable Angle

The luminaire head is versatile, with an adjustable angle from 0-25˚, allowing for precise adjustments to the beam angle, meeting the requirements of various scenarios.

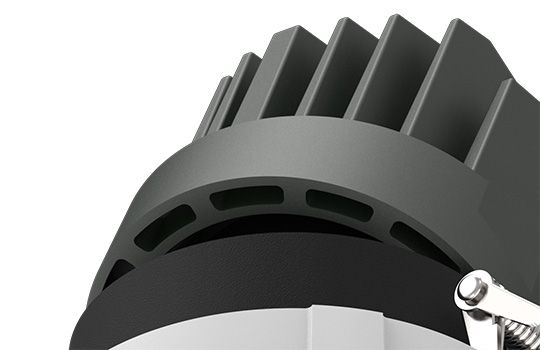

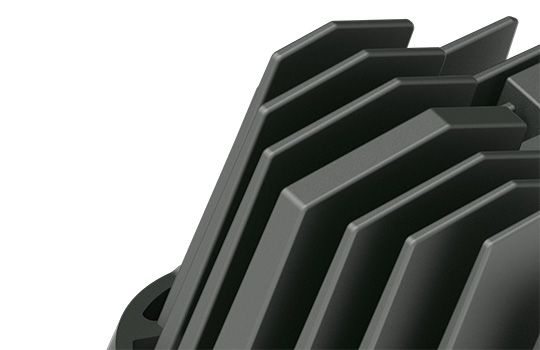

Efficient Heat Dissipation

Utilises cold-forged heat sinks with the luminaire body and heat sink integrally moulded. The unique airway design maximizes the dissipation effect, thereby extending the service life.








Precision Aluminium Material

The luminaire body is made of high-purity aluminium, meticulously crafted with CNC precision, with precise workmanship, and finished with a high-temperature baking paint process for an exceptionally strong aesthetic appeal.


SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    20° / 30°

  • Power

    7W

  • CRI

    ≧90

  • Luminous Flux

    430lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White+Silver Grey

  • Cutout Hole

    Ø55mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Wallwash

  • Power

    7W

  • CRI

    ≧90

  • Luminous Flux

    200lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White+Silver Grey

  • Cutout Hole

    Ø55mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    20° / 30°

  • Power

    10W

  • CRI

    ≧90

  • Luminous Flux

    730lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White+Silver Grey

  • Cutout Hole

    Ø75mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Wallwash

  • Power

    10W

  • CRI

    ≧90

  • Luminous Flux

    440lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White+Silver Grey

  • Cutout Hole

    Ø75mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    20° / 30°

  • Power

    20W

  • CRI

    ≧90

  • Luminous Flux

    1350lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White+Silver Grey

  • Cutout Hole

    Ø95mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Wallwash

  • Power

    20W

  • CRI

    ≧90

  • Luminous Flux

    1040lm

  • CCT

    2700K / 3000K / 4000K / Tunable

  • Material

    Aluminum

  • Finish Color

    White+Silver Grey

  • Cutout Hole

    Ø95mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    220-240Vac 50Hz

  • BA.

    24°

  • Power

    10W

  • CRI

    ≧90

  • Luminous Flux

    600lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White+Silver Grey

  • Cutout Hole

    Ø75mm

  • Dimming Control

    non-dim
