Cubie


Product Features

Exchangeable Optic Modules

While offering several exchangable optics with fixed angles, ranging from narrow-beam 8° to wide-beam 36°, the system is concluded by a zoom (20°-58°) and a wallwash optic, resulting in countless possibilities with just one fixture.

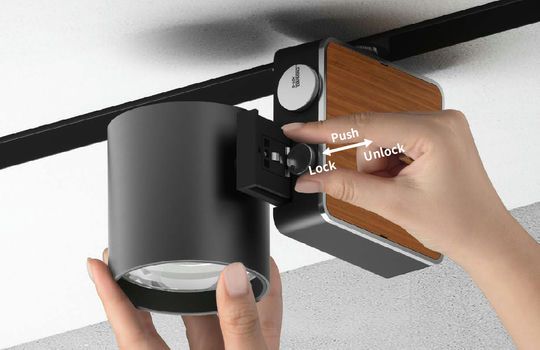

Fast Style Change

Cubie track light provides the simplest way to change the light module and the outlook pattern.

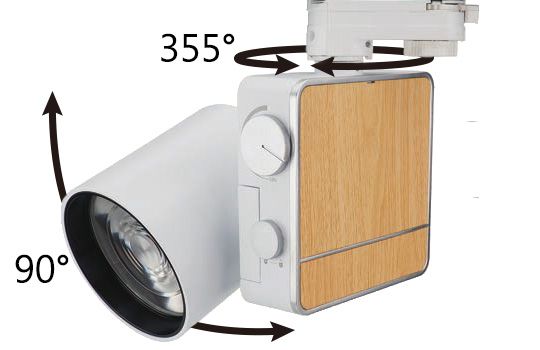

Universal Adjustment Features

Easy and quick changes without tools pan 355° and tilt 90°


SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    20°-58°

  • Power

    35W

  • CRI

    ≧90

  • Luminous Flux

    2200lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    15° / 24° / 36°

  • Power

    35W

  • CRI

    ≧90

  • Luminous Flux

    2300lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Asymmetric wallwash

  • Power

    35W

  • CRI

    ≧90

  • Luminous Flux

    2100lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

  • Power

    22W

  • CRI

    ≧90

  • Luminous Flux

    1730lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    /

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart
