Brio


Product Features

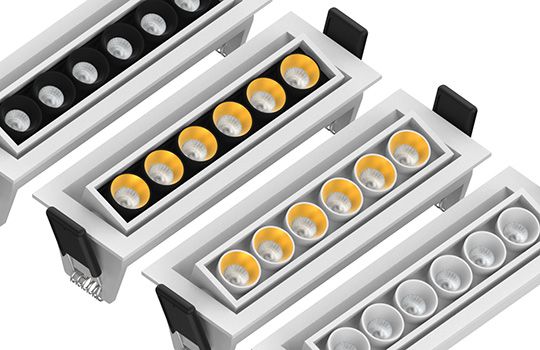

Linear Lighting Fixtures

Characterised by a linear grille, the luminaire body can pivot to adjust the direction of illumination, while the front ring displays a variety of colours.




Efficient Heat Dissipation Design

The luminaire and heat sink are integrally formed, featuring a special airflow design to maximize heat dissipation efficiency and extend the lifespan of the product.









SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 36°

  • Power

    5W

  • CRI

    ≥90

  • Luminous Flux

    220lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White

  • Cutout Hole

    65*27mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 36°

  • Power

    5W

  • CRI

    ≥90

  • Luminous Flux

    230lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White

  • Cutout Hole

    78*43mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 36°

  • Power

    10W

  • CRI

    ≥90

  • Luminous Flux

    760lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White

  • Cutout Hole

    122*27mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 36°

  • Power

    10W

  • CRI

    ≥90

  • Luminous Flux

    810lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White

  • Cutout Hole

    136*43mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 36°

  • Power

    15W

  • CRI

    ≥90

  • Luminous Flux

    1160lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White

  • Cutout Hole

    236*27mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    24° / 36°

  • Power

    15W

  • CRI

    ≥90

  • Luminous Flux

    1100lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White

  • Cutout Hole

    250*43mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart
