Matrix


Product Features

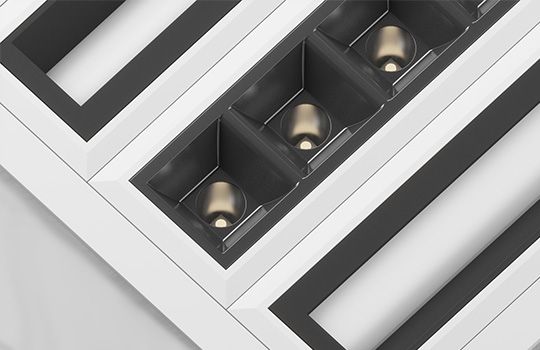

Multifunctional Lighting Design

Combining a traditional grille aesthetic, this lighting solution provides options for wall washing, general illumination, and accent lighting. It is available with optional frames, ensuring a sleek design that is versatile and functional.

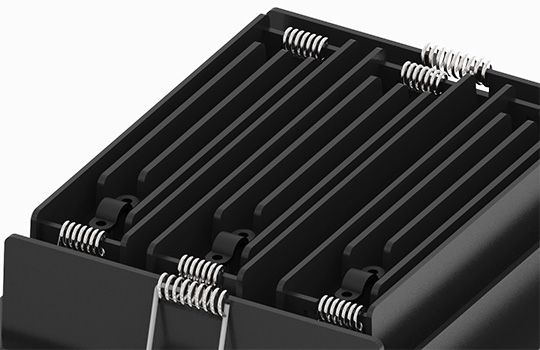

Efficient Heat Dissipation Design

The luminaire and heat sink are integrally formed, featuring a special airflow design to maximize heat dissipation efficiency and extend the lifespan of the product.






SPECIFICATION

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Asymmetric wallwash

  • Power

    14W

  • CRI

    ≧90

  • Luminous Flux

    880lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    36x139mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    15° / 24° / 36°

  • Power

    14W

  • CRI

    ≧90

  • Luminous Flux

    650lm

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    36x139mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    Asymmetric wallwash

  • Power

    14W*3

  • CRI

    ≧90

  • Luminous Flux

    650lm+880lm*2

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    130x158mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart

  • Input Voltage

    100-240Vac 50/60Hz

  • BA.

    15° / 25° / 30°

  • Power

    14W*3

  • CRI

    ≧90

  • Luminous Flux

    650lm*3

  • CCT

    2700K / 3000K / 4000K

  • Material

    Aluminum

  • Finish Color

    White / Black

  • Cutout Hole

    130x158mm

  • Dimming Control

    non-dim / Triac / 0-10V / DALI / ACO Smart
