產品特點
◆ 模組化設計
依據不同需求提供盒燈及基礎崁燈的多樣選擇，無邊框燈具與天花板無縫結合，整合了簡潔的外觀設計及多功能特點，簡化空間設計並提升整體美感。

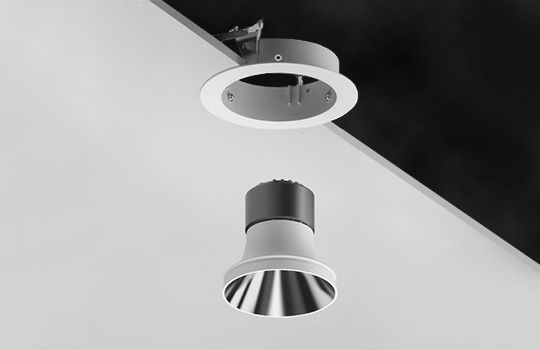

快速更換模組
採用快速更換模組的設計，實現DIY目標，無需拆除整個燈具即可更換模組。

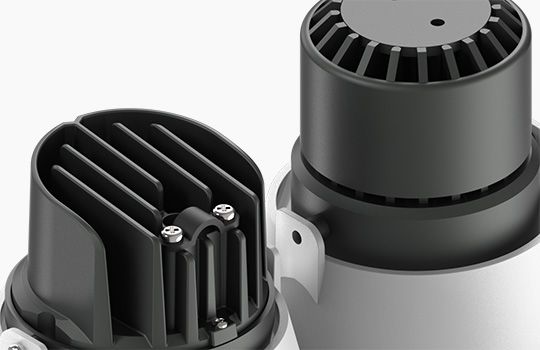

高效散熱
採用冷鍛散熱器，燈體與散熱器一體成型，特殊的風道設計，更大化的增加散效果，延長使用壽命。
採用冷鍛散熱器，燈體與散熱器一體成型，特殊的風道設計，更大化的增加散效果，延長使用壽命。
Bloc
產品特點
SPECIFICATION
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
15° / 20° / 30°
-
Power
8W
-
CRI
≧90
-
Luminous Flux
800lm
-
CCT
2700K / 3000K / 4000K / Tunable
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
/
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
15° / 24° / 30°
-
Power
12W
-
CRI
≧90
-
Luminous Flux
1000lm
-
CCT
2700K / 3000K / 4000K / Tunable
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
/
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
15° / 20° / 30°
-
Power
8W
-
CRI
≧90
-
Luminous Flux
800lm
-
CCT
2700K / 3000K / 4000K /Tunable
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
/
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
15° / 24° / 30°
-
Power
12W
-
CRI
≧90
-
Luminous Flux
1000lm
-
CCT
2700K / 3000K / 4000K /Tunable
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
/
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
85°
-
Power
8W
-
CRI
≧90
-
Luminous Flux
300lm
-
CCT
2700K / 3000K / 4000K /5700K
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
/
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
15° / 20° / 30°
-
Power
8W
-
CRI
≧90
-
Luminous Flux
800lm
-
CCT
2700K / 3000K / 4000K / Tunable
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
Ø100mm
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
24° / 45°
-
Power
8W
-
CRI
≧90
-
Luminous Flux
800lm
-
CCT
2700K / 3000K / 4000K / Tunable
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
Ø100mm
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
15°/24° / 36°
-
Power
9W
-
CRI
≧90
-
Luminous Flux
740lm
-
CCT
2700K / 3000K / 4000K / Tunable
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
Ø100mm
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
85°
-
Power
9W
-
CRI
≧90
-
Luminous Flux
300lm
-
CCT
2700K / 3000K / 4000K /5700K
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
Ø100mm
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
-
Input Voltage
100-240Vac 50/60Hz
-
BA.
15°/24° / 36°
-
Power
8W
-
CRI
≧90
-
Luminous Flux
640lm
-
CCT
2700K / 3000K / 4000K / Tunable
-
Material
Aluminum
-
Finish Color
White / Grey / Black
-
Cutout Hole
Ø185mm
-
Dimming Control
non-dim / Triac / 0-10V / DALI / ACO Smart
